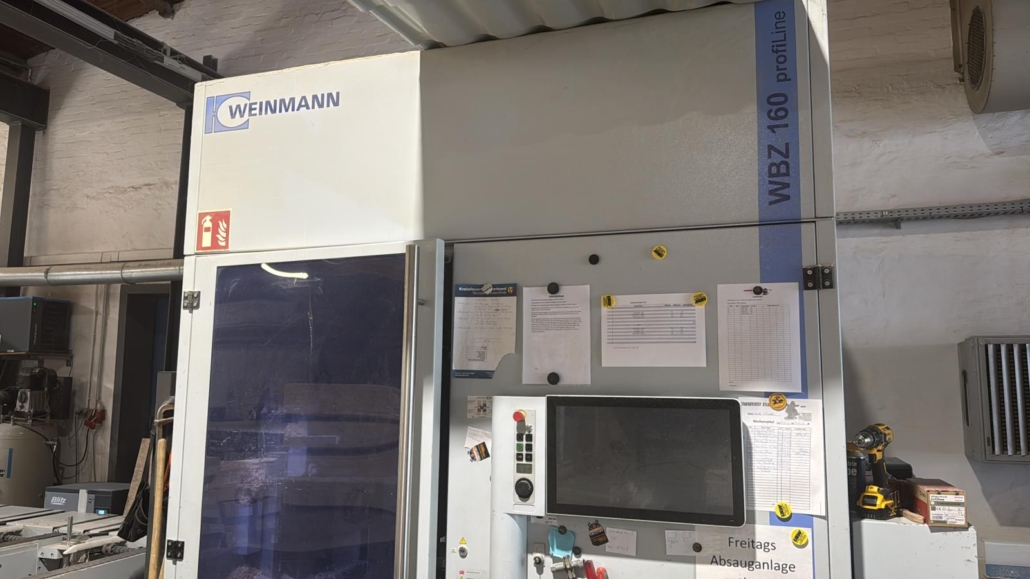

| Weinmann Profi WBZ160 |
|
|
|
|
|
| Manufacturer |
Weinmann |
| Type: |
WBZ160 Profi |
| Year: |
2010 |
|
| M-Nr.: |
0-390-09-0259 |
| Control: |
PC85, Wupworks, Schuler MDE, woodScout |
| Homag Power Control: |
Homatic Power Control Steuerung – Homatic CNC System PC85 mit Windows XP (US) embedded Industrie PC |
|
Auswählmenü, Alarmtexte in Klarschrift, Ethernetanschluss, Ferndiagnose, Postprozessor Verbindung |
|
Harddrive for machine programs |
|
Harddrive for product data/-programs |
|
1 CD-ROM drive |
|
USB-connection |
|

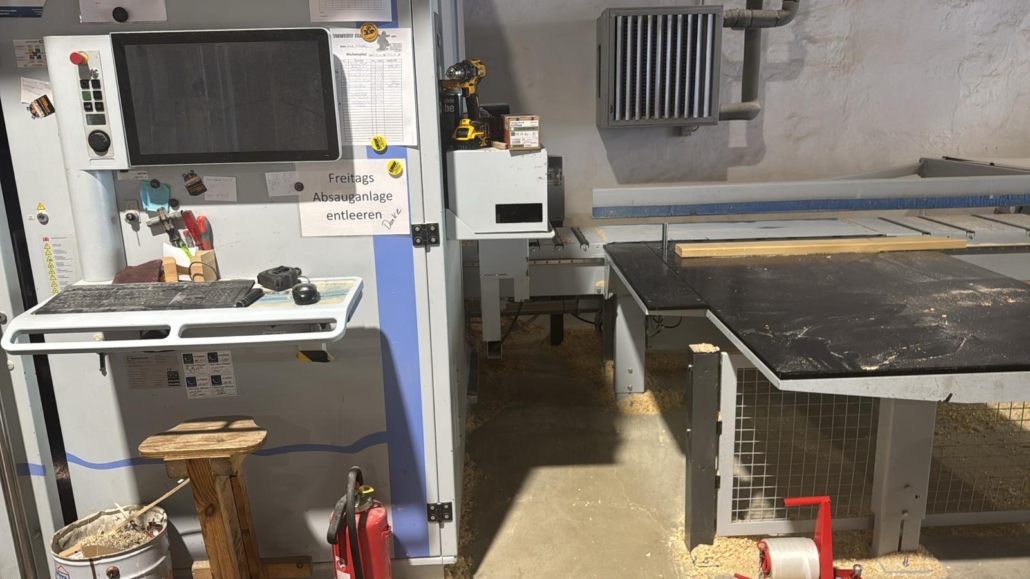

17″ Screen with PC keyboard and mouse |
|
Program data can be exchanged via LAN/USB/CD Rom direct form CAD-works to machine |
|
Optional programming at the machine (PC) |
|
Machine control by 1 person incl. all material handling in- and out. |
|
Fully integrated optimization programm (optimization per job or -multiple jobs combined) |
| YouTube: |
https://youtu.be/AetdX6aFrhY |
| Technical details: |
|
|
| Max. workpiece length: |
X: |
9.700 mm |
| Workpiece width: |
Y: |
405 mm |
| Workpiece height: |
Z: |
200 mm |
|
|
|
| Nr of Aggregates: |
4 |
|
| Saw: |
12 KW, 5-ax control |
| Flex25 Aggregate: |
7.5 KW Homag Flex25; A-ax and C-ax, HSK F63chucks, frequency controlled 4.000-18.000 rpm |
| Werkzeugwechselplätze |
12 Positionen- Tellerwechsler, max.ø130 mm, oder 6 Positionen- Tellerwechsler, max.ø180 mm |
| Printer: |
|
|
| Marker/ Ballpoint marker/inkt-jet: |
3 sides |
|
|
|
|
| Tooling/Pick-up aggregates: |
|
|
| Pick-up aggregates: |

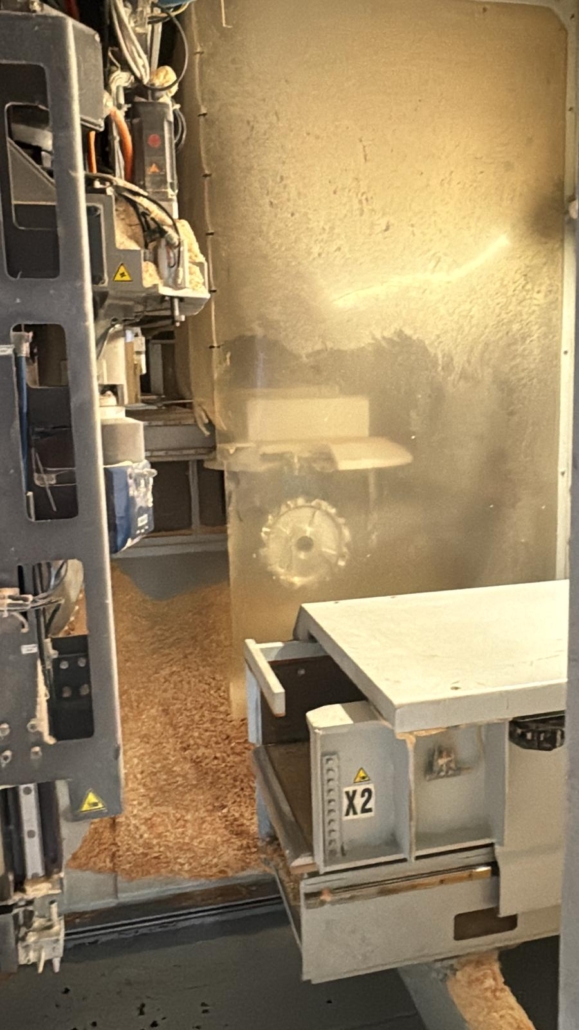

Saw (fixed) ø550 mm, C-ax: 360°, A-ax: 0-90° |
|
Hoag Flex 25 Aggregate control |
|
|
|

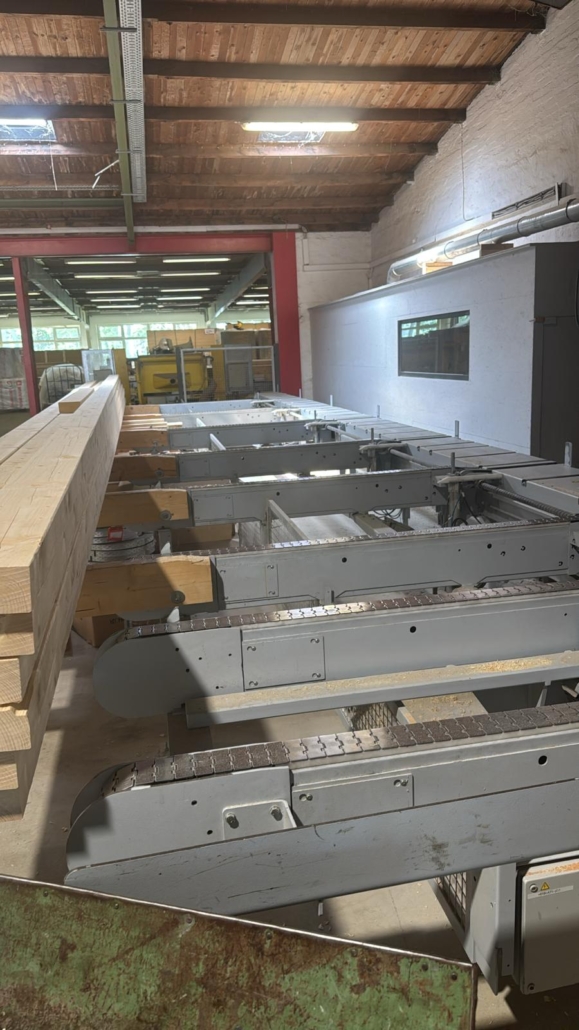

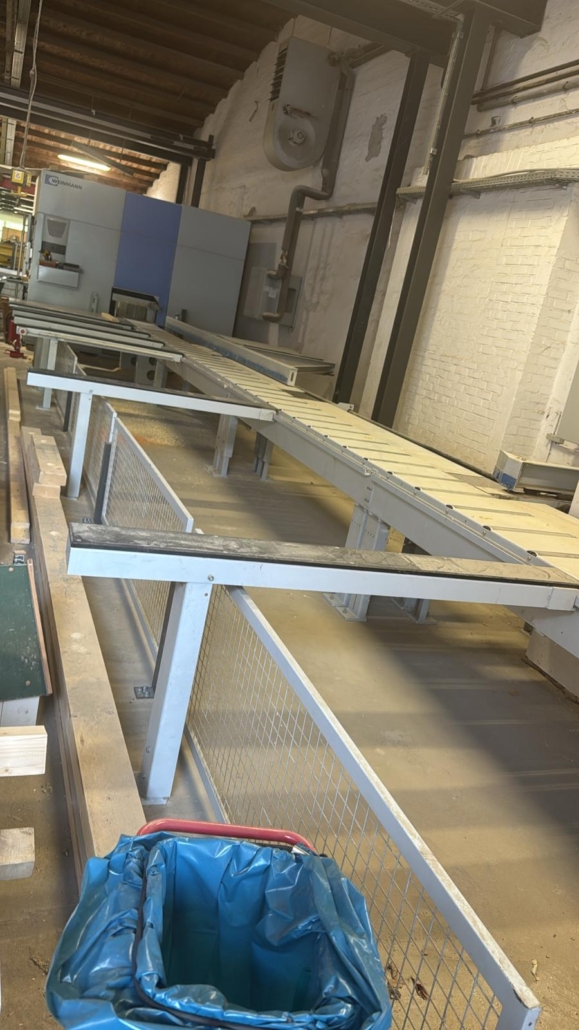

| Product infeed: |
Cross direction conveyors, longitudinal infeed with n processlamp with |
| Vorschub Geschwindigkeit: |
X: |
Max. 150 m/min |
|
|
|
| Aufstellmasse: |
Länge: |
21 m |
|
Tiefe: |
4.1 m |
|
Höhe: |
2.9 m |
| Gewicht: |
+/- 5.000 KG |
|
|
|
| Konformitäts-Kennzeichnung |
CE-Zeichen |
|
|
|

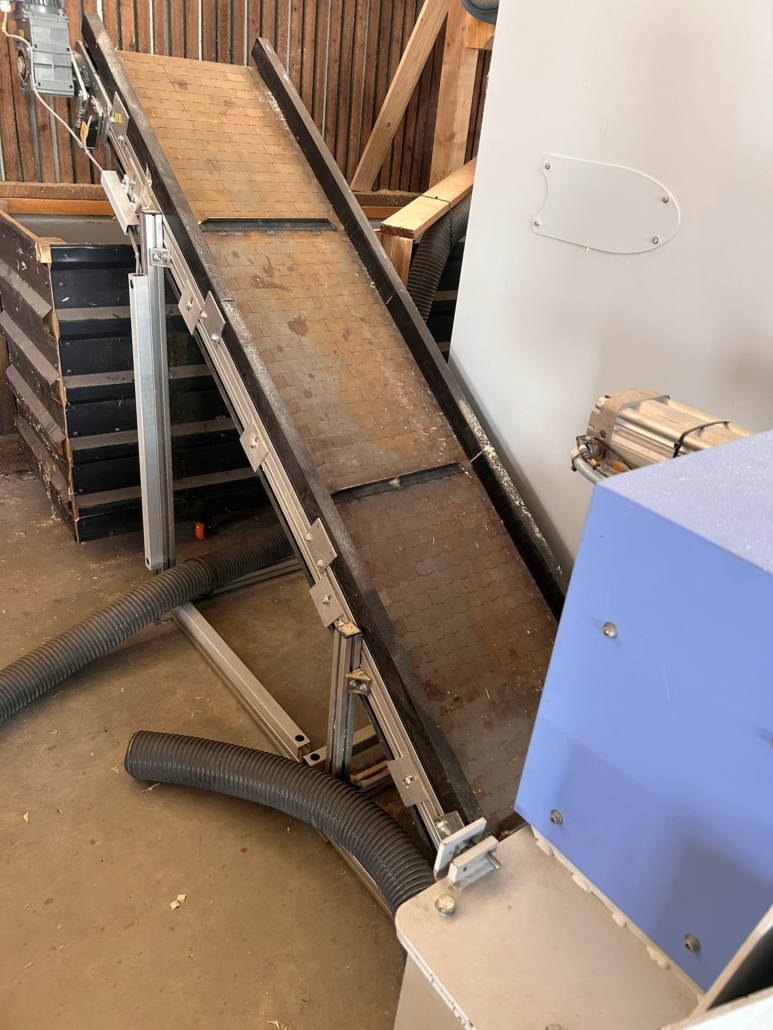

| Optional: |
Disk- moulder |
|
Lock hole router |
