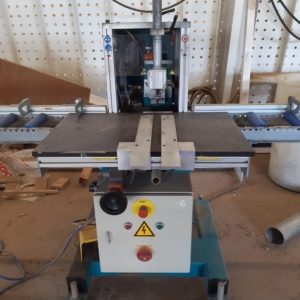

| Weeke ABD 150 Drill and dowel inserting machining center |
|
|
|
| manufacturer: |
Weeke |
|
| Type: |
ABD150 |
|
| Year: |
2013 |
|
| Mach.Nr.: |
0-253-05-5352 |
| Production hours: |
|
|
| Desctription: |
CNC-controlled drill- and dowel automat for production of furniture and such |
|
|
|
| Workpiece dimensions: |
X-ax |
20 – 1.250 mm |
|
Y-ax |
100 – 800 mm |
|
Z-ax |
10 – 60 mm |
| Center positioning fence: |
max. 600 mm |
| Workfield: |
|
1.250 mm |
|
|
|
| Positioning: |
X-as |
AC -servo drivesystem via tooth bar |
|
Y-as |
manual setting |
|
X-as |
manual setting |
|
|
|
| Positioning stops: |
Table support with rear- and sideward stoppers |
|
6 workpiece supports manual positioning over full machine width, with scale |
|
|
|
|
Pneumatisch controlled center fence via manual control button |
|
5 top clamps, manual positioning |
|
Vacuum clamps for sensitive panel surface |
|
10 vacüumcups (115*140*100 mm) manual position over full machine width |
|
2 vacüumcups (125*75*100 mm) manual positioning over full machine width |
|
1 external vacuüm cup for shablone |
|
Vacuümpump: 40m³/hour |
|
|
|
| Aggregates: |
Horizontal dril with 1 spindel |
|
1 dowel inserting aggregate (32 mm to drill head) |
|
Glue nozzle (adjustable glue quantity) |
|
Glue spread control |
|
Oil nozzle for glue nozzle spraying |
|
Standard dowel dimensions: 8 x 30 mm/8×35 mm |
|
Vibrating dowel feed system |
|
|
|
| PC85T Power Control Windows-PC based |
|
PLC-control in accordance with IEC 61131 |
|
Windows XP (US) embedded control system |
|
PC with 2 GHz and 512 Mbyte RAM |
|
TFT-flatscreen 17 inch |
|
40 Gbyte hard disc |
|
3 1/2 inch Disc station |
|
CD-RW-station |
|
USB-port |
|
|
Digital drive control via glasfiber cabling |
|
Decentralize, digital CANbussystem |
|
EtherNet port 10/100 MBIT RJ45 (incl.optional 8-fold switch ) |
|
Teleservice (modem) compatibility |
|
|
|
| Software: |
PC85T software with graphics display |
|
WoodWop for graphic, dialog CNC-programming |
|
Graphical tool library |
|
Productionlist auditing system |
|
CNC-control |
|
|
Graphic data storage |
|
Error – clear descriptive message system |
|
Schuler MDE Basic for machine data registration |
|
Softwarepakket for external PC: |
|
|
|
| CE-safety and protection: |
|
|
Safety fences at left and right hand side of the machine |
| Machine documentation: |
|
|
Documentation in hard copy as well as on CD-ROM, incl. sparepart lists and electric plans |
|
|
|
| Options: |
Ethernet card with 8-fold switch, incl. netcable and switch to network card |
|
8-fold switch 10/100 Nbit (industrial type) |
|
Extra clamp cilinder (manueel setting) |
|
Werkfiled extension 2.100 naar 2.750 mm |
|
Vacuüm clamping system for sensitive panel surface |
|
Vacuümpump: 40m³/uur |
|
6 Workpiece supports manual positioning over full machine width |
|
10 manual positionable vacuum cups (115*140*100 mm) |
|
2 manual positionable vacuum cup (125*75*100 mm) |
|
Workpiece supports with scale |
|
8 in x-direction positioned stops |
|
2 in y-direction positioned stops |
|
1loose vacuüm connection for shablone |
