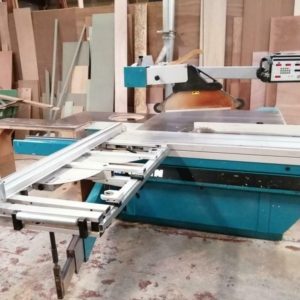

| Martin T77PreX (2*46° tilting) and length compensation when angular cuts (via Bluetoouth) |
|
|
| Manufacturer: |
Martin |
| Type: |
T77PreX |
| Year: |
2024 |
| M-Nr.: |
V588686 |
|
|
| Control: |
Martin ConnectTouch |
|
3-ax CNC-controlled plus 2 add. axes integrated in central control but manually adjusted |
| Control panel: |
7″ ConnectTouch TouchScreen Control at eye-level, turning-swivelling |
| Optional: |
Connect 12.9″ Apple I-Pad Pro (Otterbox defender case and bevestiging ConnectTouch paneel) |
|
|
| Table Size: |
1.950 x 1.350 mm |
| Table Heigt: |
900mm |
| Sliding Table: |
3.300mm |
| Main saw: |
7.5 kW frequency controlled, synchrone motor |
| Saw Blade Arbor |
Main saw blade arbor: 30 mm Ø; two drive pins |
| Saw Blade replace: |
“ProLock” quick change system |
| Saw Blades: |
Ø 250 – 550 mm |
| Cutting Heigt: |
205 mm (saw blade 550 mm) |
| Blade tilting: |
-46° tot +46°; Digital counter: Repeatabilltity: ± 0,005° |
| SafeMove: |
Automatic positioning of the top dust extraction cover when saw blade is tilted -xx°to 0 and to +xx° |
| Cutting Width: |
1.350 mm SafeDrive; Repeatabillity ± 0,05 mm |
| Scoring Blades |
3-ax controlled scoring saw aggregate, automatic adjusting when main saw programmed parameters change |
| Cross cut table: |
Parallelogram table with digital reading and integrated into central control – RadioCompens system with Bluetooth data transfer |
| Lengte aanslag: |
Anodised aluminium with 2 digital stoppers integrated into central control via RadioCompens, Bluetooth data transfer and Ball bearing running on hardened steel rails |
| Rip fence: |
Anodised aluminium fence; |
|
|
| Condition: |
NEW |
