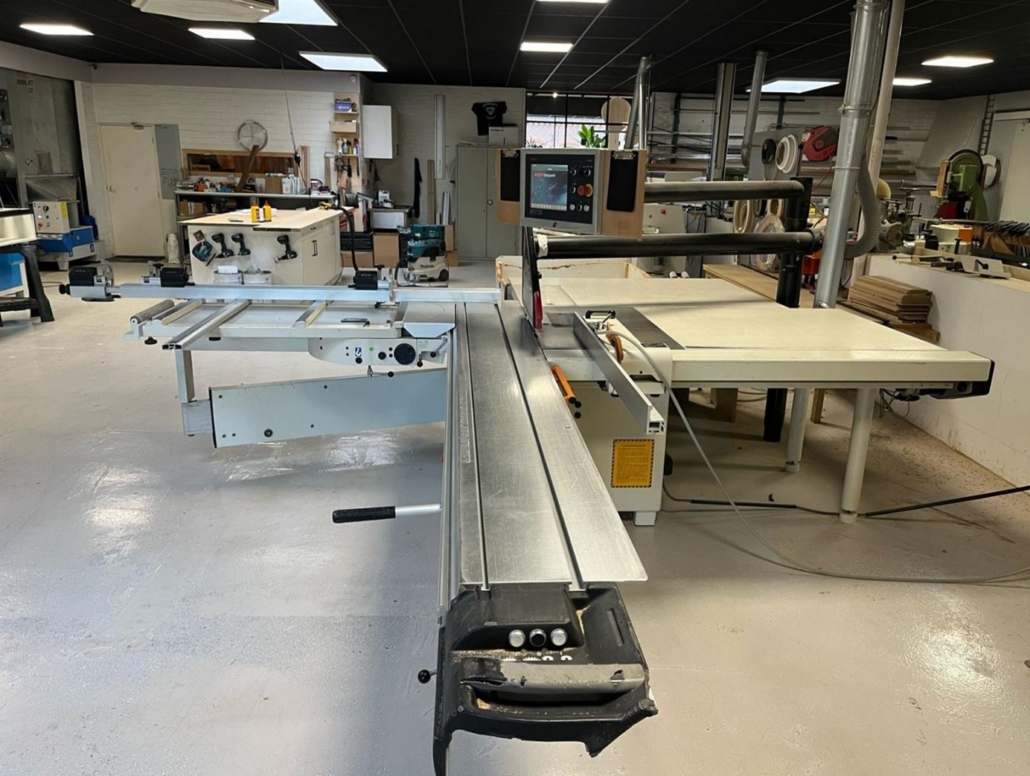

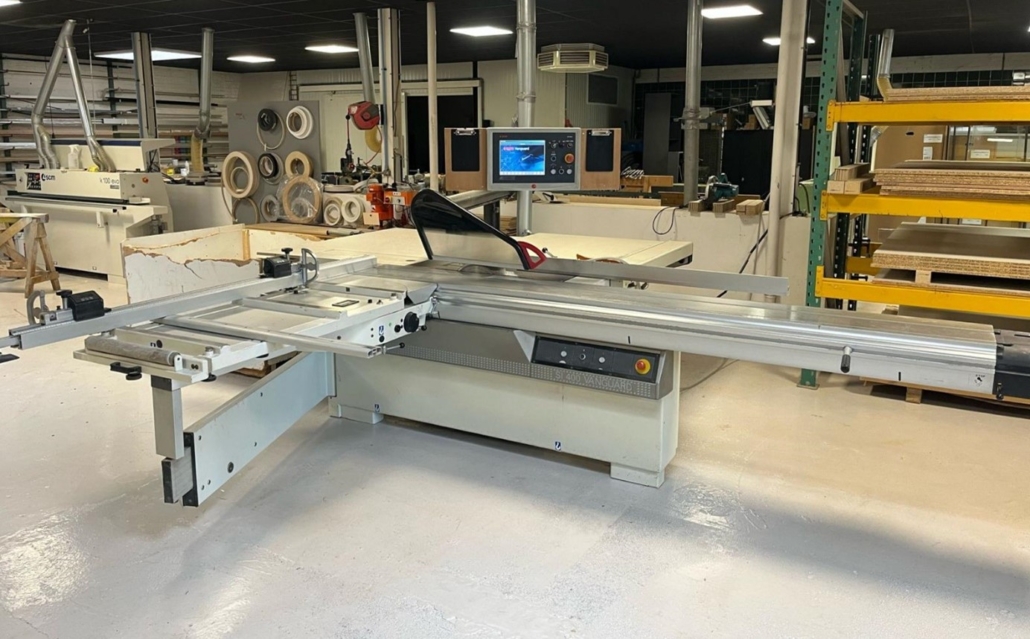

| SCM SI400 Vanguard sliding table saw, 3-ax Control, Swivelling cross-cut table |
|
|
| Manufacturer |
SCM |
| Type |
SI400 Vanguard |
| M-Nr.: |
|
| Year |
2004 |
| Touchscreen: |
12″full-colour touchscreen, start-stop function in sliding table |
| Control: |
3-ax control, with control panel at eye -level |
|
|
|
|
|
999 programm positions, 6 cuts per programm, help function with graphics, collision control |
| Sliding Table |
3.200mm |
| Saw Blades |
Ø 250 – 400 mm |
| Main saw |
5,5 kW, 3.000-4.000-5.000 rpm |
| Cutting Heigt |
130 mm (saw diam.. 400 mm-90°, 92 mm- 45°.) |
| Tilting: |
0 – 45° |
| Scorer: |
ø120 mm, 2-ax control |
| Motor: |
0.75 KW, 8.500 rpm |
| Cutting Width |
1.500 mm |
| Rip fence |
anodised aluminium |
| Cross-cut table: |
Vanguard cross-cut table with swiveling -50° upto 50° |
| Cross-cut fence: |
Aluminium 2 digital stops with angular length correction, max 3.2 m |
